Barco Encore

Sistema/Plataforma

Sistema de Apresentação Barco Encore

Especificações do Hardware

Voltagem
Tensao – 100-240V, 50-60Hz
Consumo de energia – 175W

Saídas de Vídeo
2 x Program Out (DVI) (2048 x 1080 max)
1 x Preview Out (DVI) (2048 x 1080 max)

2 x Program Out (VGA) (1920 x 1080 max)
1 x Preview Out (VGA) (1920 x 1080 max)

1 x Program Out (HD/SDI) (1920 x 1080 max)

Entradas de Vídeo
6x HD/SDI In
6x DVI In
6x VGA/ANALOG In

Conexao entre VPS
1 x Rede Ethernet RJ45
3 x Source Link DVI In
3 x Source Link DVI Out
1 x Program Link DVI In
1 x Program Link DVI Out
1 x BNC Genlock In
* Cada VP pode ser equipado com uma,
duas ou tres placas de Mixer/Efeito (M/E)
para atender diferentes necessidades de aplicações.

* Dentro de um sistema Encore, cada VP é essencialmente,
um destino/saida único e vários VPs podem ser combinados
para criar sistemas avançados compostos por destinos
unicos e combinados.

*Um VP configurado com tres M/Es suporta seis
imagens PIP ou KEY independentes ou tres PIPs em transição,
essencialmente, Dois canais de plano de fundo (BG) não
dimensionados fornecem uma tela de fundo de alta
resolução que também tem suporte para transições contínuas.

NA Server 4k

Software/Plataforma
Software – Resolume 5
Sistema Operacional – Windows 8.1 64bit

Especificações do Hardware

Voltagem
Tensao – 100-240V, 50-60Hz
Consumo de energia – 1OOOW

CPU
Processador Intel Core i7-6700K
4.0ghz Skylake

Memória
32GB DDR4 RAM

Armazenamento
1 TB SSD (unidade interna de armazenamento)

Saídas de vídeo
3 x DisplayPort 1.2 (3840 x 2160 max)
1 x HDMI OUT (3840 x 2160 max)
1 x Dual-link DVI (3840 x 2160 max)

Entrada de Vídeo
1 x 6G-SD1
2 x HDMI 1.4

Saídas de Áudio
2 x XLR balanceado Out
1 x SPDIF Out
1 x P2 Stereo Out

Entradas de Áudio
2 x XLR balanceado In (VIA PLACA DE AUDIO EXTERNA)
1 x P2 Stereo in

Rede Geral
2 x KIiier Gigabit LAN
1 x Killer™ Wireless
1 x Conexao Bluetooth

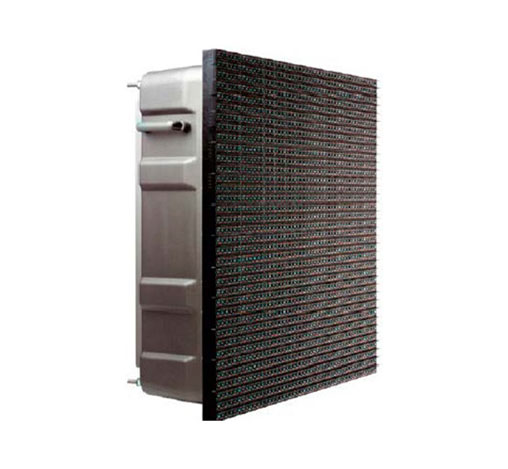

Unilumin 1.9mm

• Resolução por módulo: 320×180 pixels
• Brilho: 800 (cd/sqm)
• Tamanho: 609.92 × 343.08 × 71 mm
• Peso: 7.5 kg

Features

Super alta resolução em 16×9. Módulos revolucionário em aspect ratio que podemos reproduzir HD, 4k e 8k.

Disguise 4×4 pro

Software
disguise suite
OS – Windows 8.1 64bit

Hardware

Voltage
100-240V, 50-60Hz
Power Supply – 1OOOW

CPU
2 x Xeon Hexa-Core 3.S Ghz

Memory
32GB DDR3 ECC RAM

Storage
2 x 80GB SSD
2TB SSD RAID

video outputs
1 x DisplayPort 1.2 (3840 x 2160 max)
16 x DVI OUT (1920 x 1200 max)

video inputs
4 x 3G-SDI

audio outputs
2 x Balanced XLR Out
1 x P2 Stereo Out 1 xADAT/SPDIF Out

audio inputs
2 x Balanced XLR In
1 x ADAT/SPDIF In

Ethernet
1 x Gigabit LAN
1 x Artnet Gigabit LAN
2 x 1OGb/sec LAN

MIDI
1 x In
1 x Out

ports
2 x USB 2.0
3 x USB 3.0
1 x Firewire 800

Sync
1 x BNC Genlock

Folsom Image Pro

Sistema/Plataforma
Processador de Sinal Multiuso Barco lmagePRO

Especificações do Hardware

Voltagem
Tensao – 100-240V, 50-60Hz
Consumo de energia – 75W

Saídas de Vídeo
1 x DVI Out (2048 x 1080 max)
1 x Composite (1 BNC) Out
1x S-video Out
1x 3G SDI Out
1 xVGA Out
1x composite (5 BNC) Out

Entradas de Vídeo
1x DVl ln
1x 3G SDI In
1x VGA In
1x Composite (5 BNC) In

Conexao/Controle
1x Ethernet RJRS
1x RS232
1x BNC Genlock In
A lmagePRO combina num só equipamento
multiplicador de frequencias de vídeo,
conversor de busca, comutador e transcoder.

• NEX-FS700R Super 35 Camcorder

  Camera Specifications
  Image Sensor	4K Exmor Super 35 CMOS Image Sensor (11.6MP)
  Effective Pixels	4K: 8,900,000 pixel HD: 8,300,000 pixelsPhoto: 8,400,000 pixels (16×9) 7,100,000 pixels (4×3)
  Aspect Ratio	4K: 17:9 HD: 16:9 Photo: 16:9 or 3:2
  Sensitivity	0 db 3 db 6 db 9 db 12 db 15 db 18 db 21 db 24 db 27 db 30 db
  ND Filter Switching Mechanism	Clear 1/4 = ND.6 (2 stops) 1/16 = ND1.2 (4 stops) 1/64 = ND1.8 (6 stops)
  White Balance	Auto, One Push AB, Indoor (3200K) Outdoor (5800K ± 7 positions) Manual WB Temperature (2300 to 15000K, 100K steps)
  Signal System	60/50Hz (NTSC/PAL)
  LCD Monitor	3.5″ (8.9 cm)
  Screen Resolution	Approx. 921,000 dots (1920 x 480)
  Viewfinder	Supplied VF tube for LCD
  Shutter Speed	Auto: 1/60 to 1/2000 30p: 1/30 to 1/2000 24p: 1/48 to 1/2400Manual 24p/30p/60p/60i: 1/3 to 1/10000
  Recording Media	Flash Memory Unit (HXR-FMU128) Memory Stick PRO Duo (Mark2 only) Memory Stick PRO-HG Duo SD/SDHC/SDXC Memory Card
  Recording Formats	PS: max 28 Mbps, 1920 x 1080/60p, 50p (16:9) FX: max 24 Mbps, 1920 x 1080/60i, 50i, 30p, 25p, 24p (16:9) 1280 x 720/60p, 50p (16:9) FH: approx. 17 Mbps (average), 1920 x 1080/60i, 50i, 30p, 25p, 24p (16:9) 1280 x 720/60p, 50p (16:9) HQ: approx. 9 Mbps (average), 1440 x 1080/60i, 50i (16:9) LP approx. 5 Mbps (average), 1440 x 1080/60i, 50i (16:9) HQ: approx. 9 Mbps (average), 720 x 480/60i, 720 x 576/50i (16:9, 4:3) 12-bit 2K and 4K RAW available via the HXR-IFR5 Interface Unit and AXS-R5 Recorder
  Video Recording Format	HD video: MPEG-4 AVC/H.264 AVCHD SD video: MPEG-2 PS
  Audio Recording Format	Linear PCM 2-channel (48 kHz, 16-bit) Dolby Digital Stereo (48 kHz, 16-bit)
  Slow & Quick Motion Function	60 Hz System Reduced resolution: 960 fps (19 second burst) 480 fps (9 second burst)Full 1920x1080p: 240 fps (8 second burst) 120 fps (16 second burst) 60 fps 30 fps 15 fps 8 fps 4 fps 2 fps 1 fps50 Hz System Reduced resolution: 800 fps (23 second burst) 400 fps (12 second burst)Full 1920x1080p: 200 fps (9 second burst) 100 fps (19 second burst) 50 fps 25 fps 12 fps 6 fps 3 fps 2 fps 1 fps
  Recording/Playback Time	170 min with 32GB Memory Stick Pro-HG Duo HX in 1080/30p at 24Mbps

  Input / Output
  Audio In	2 x XLR 3-pin (female), LINE/MIC/MIC selectable with +48V phantom power)
  Audio Out	2 x RCA (left and right)
  Video Out	1 x 3G/HD-SDI (BNC connector), sends 4K/2K 12-Bit RAW data to HXR-IFR5 Interface Unit 1 x HDMI 1.4 Type A 3 x RCA via Mini-D jack
  Remote Input	1 x 2.5 mm LANC type
  Timecode Output	HDMI 1.4 and 3G/HD-SDI (embedded SMPTE)
  USB Port	1 x mini-AB USB 2.0
  Accessory Shoe	Cold shoe
  Headphone Jack	1 x 3.5 mm stereo mini jack

  General Specifications
  Power Supply	Battery pack: 7.2 VDC AC adapter: 8.4 VDC
  Power Consumption	5.6 W
  Operating Temperature	32 to 104°F (0 to 40°C)
  Storage Temperature	-4 to 140°F (-20 to 60°C)
  Dimensions	Camera: 5.0 x 4.0 x 7.6″ (126.5 x 101.5 x 193.5 mm) Microphone (Diam. x L): 1.7 x 7.6″ (4.2 x 19.3 cm)
  Weight	Body only: 3.25 lb (1.47 kg) Microphone: 4.2 oz (118.5 g)

  Packaging Info
  Box Dimensions (LxWxH)	17.5 x 10.7 x 9.5″

• E PZ 18-200mm f/3.5-6.3 OSS Lens

  Performance
  Focal Length	18 – 200mm Comparable 35mm Focal Length: 27 – 300 mm
  Aperture	Maximum: f/3.5 – 6.3 Minimum: f/22 – 40
  Camera Mount Type	Sony E
  Format Compatibility	APS-C
  Angle of View	76° – 8°
  Minimum Focus Distance	11.81″ (30 cm)
  Magnification	0.35x
  Elements/Groups	17 / 12
  Diaphragm Blades	7, Rounded

  Features
  Image Stabilization	Yes
  Autofocus	Yes
  Tripod Collar	No

  Physical
  Filter Thread	Front: 67 mm
  Dimensions (DxL)	Approx. 3.67 x 3.90″ (93.2 x 99 mm)
  Weight	1.43 lb (649 g)

  Packaging Info
  Box Dimensions (LxWxH)	8.5 x 5.0 x 5.0″

D3 2.5

Software/Plataforma

Suite de Produção D3 Completa
Sistema Operacional – Windows 7 64bit

Especificações do Hardware

Voltagem
Tensao – 100-240V, 50-60Hz
Consumo de energia – 850 W

CPU
Intel Core i7 3.4Ghz

Memória
8GB DDR3 RAM

Armazenamento
1 x 80GB SSD (unidade interna do sistema)
1TB SSD (unidade interna de Armazenamento)

Saídas de Vídeo
4 x DisplayPort 1.2 (2560 x 1600 max)

Entrada de Vídeo
2 x HD-SDI

Saídas de Áudio
2 x Balanced XLR Out
1 x Phones Out

Entradas de Audio
2 x Balanced XLR In
1 x RCA Digital In

Rede Geral
1 x Dual Gigabit LAN
1 x Artnet Gigabit LAN

MIDI
1x In
1x Out

Portas USB/Firewire 800
6x USB 2.0
1x Firewire 400
1x Firewire 800

Sincronização de Vídeo
1x BNC Genlock
2x RJ45 (ATI 5400 Card)

Barco FLM HD 20

Filmadora XDCAM EX com três sensores Exmor CMOS de 1/2 polegada com sistema de lente intercambiável gravando em Full-HD/SD

Folsom Screen Pro HD

Sistema/Plataforma
Sistema de Vídeo multicamadas Barco ScreenPR0-II

Especificações do Hardware

Voltagem
Tensao – 100-240V, 50-60Hz
Consumo de energia – 1OOW

Saídas de Vídeo
1x Program Out (DVI) (2048 x 1080 max)
2x Program Out (VGA) (1600 x 1200 max)
1x Preview Out (VGA) (1920 x 1080 max)

Entradas de Vídeo
8x VGA/Analog IN
2x HD SDI IN
2x DVI IN

Conexao/Controle
1x Rede Ethernet RJ45
2x Serial RS-232
2x BNC Genlock In

A ScreenPRO-II usa quatro camadas de imagem
2 planos de fundo/BG não dimensionados
2 Pips ou inserções dimensionadas

Panasonic PT-RZ670

• Resolução: 1920×1080 pixels
• Tamanho: 707 x 1025 x 548 mm
• Peso: 99 kg

Panasonic DZ6500K

• Light output: 6,500 ANSI Lumens
• Resolution: 1,920 ⨉ 1,080 (native)
• Contrast ratio: 2,100:1
• High Contrast Mode: 2,700:1
• Lens Type: TLD+
• Lamp: 3 KW Xenon
• Warranty universal lamphouse: 500 hours
• Max. ambient temperature: 40°C (104°F)
• Power consumption: 3700 W
• Power requirements: 220 – 240 V / 5060Hz
• Max. pixel clock: 165Mhz
• Input Resolutions: From NTSC up to UXGA (1600×1200) incl. HD (1920×1080)
• Operational ambient temperature: 040°C / 32°104°F
• Operational humidity: 080% (non condens)
• Mains voltage: 200 – 240 V
• Weight: 99 kg (218.25lbs)
• Dimensions (W x L x H): 707 x 1025 x 548 mm 27.83 x 40.35 x 21.57 inches
• Noise level at 40°C: 58 dBA
